Multi-Handler 200 Multiprocess Welder

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    WHAT'S INCLUDED

    • Comfortable 10 ft. (3m) HR-100 gun
    • 10 ft. (3 m) electrode cable with heavy-duty holder
    • 10 ft.(3m) work cable with clamp
    • Power cord and MVP plugs for 120 and 240 V
    • Built-in gas solenoid valve and dual-gauge regulator with gas hose.
    • Sample spool of .030 in. (0.8 mm) solid wire
    • Quick Select (TM) drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
    • .030 and .035 contact tips
    • Material Thickness Gauge
    • Insulator nozzles (#4,#5,#6), collet, collet body, electrode with 1/16 and 3/32 in. tungsten
    • 12.5 ft. (3.8 m) TIG torch with backcap, nozzle
    Multiprocess Capabilities
    Versatility with one machine that provides MIG, DC TIG and stick capabilities.

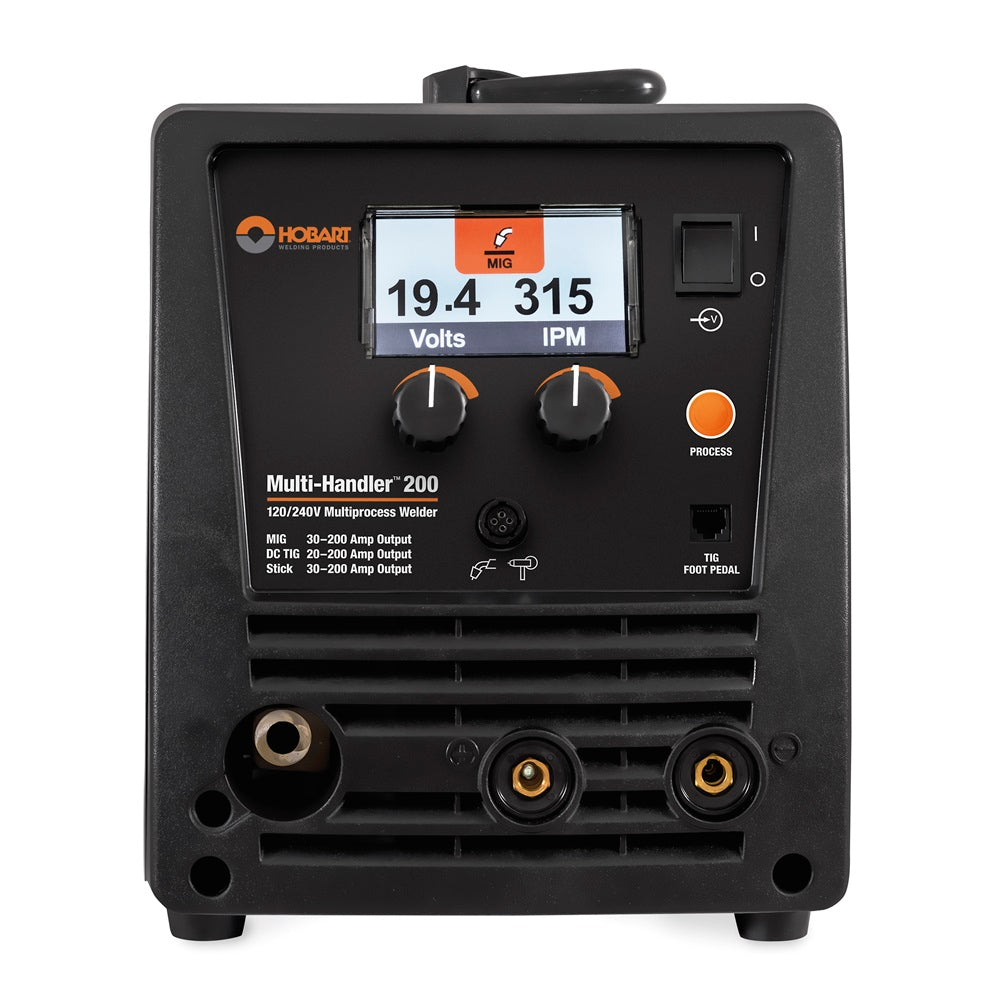

    Easy-to-use Interface
    With two knobs and a process button, setting up or changing over this machine is quick.

    Dual-Voltage
    Allows you to connect to common 120- or 240-volt power receptacles without the use of any tools — simply choose the plug that fits the receptacle.

    Quick Select Drive Roll
    Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire.

    Spool Gun Ready
    Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun.

    Hobart 5/3/1 Warranty
    Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).


    NOT INCLUDED

    • RFCS-RJ45 remote foot control
    • Shielding gas and safety equipment not included.

    SPECIFICATIONS

    PRODUCT LITERATURE

    Multi-Handler 200 287909

    PROCESSES

    Flux Cored (FCAW)
    MIG (GMAW)
    Stick (SMAW)
    TIG DC (GTAW-DC)

    GENERAL SPECIFICATIONS

    TitleMulti-Handler 200 Multiprocess Welder
    Industries InterestsDIY / Home Hobbyist
    Racing / Customizing / Restoring
    Farm and Ranch
    Metal Art / Sculptures
    Material ThicknessMild Steel 24 ga. - 3/8 in.
    Input Phase1-Phase
    Amperage RangeAmperage Min Max 30 A - 200 A
    Metal TypeMost Metals
    ProcessMIG (GMAW) Flux Cored (FCAW) Stick (SMAW) DC-TIG (GTAW-DC)
    Welding ModeCC/CV
    PortabilityHandle(s)
    Running Gear / Cart (Optional)
    Weld OutputCC,CV
    Net Width10.6 in
    Net Height13.4 in
    Net Length20.8 in
    Net Weight38.4 lbs
    Warranty3 Years
    Hobart Warranty
